The Class 117 DMUs were built by Pressed Steel of Linwood, and introduced to the Western Region of British Rail in 1960.
They were very similar in design to the Class 116 units, but had a headcode box on the cab roof, and the centre car had toilets.
In the early 1990s some of the class, by now based at Tyseley (Birmingham), were refurbished and painted in Regional Railways livery.
These units were later sent north to Haymarket Depot, releasing four Class 101 units for Strathclyde duties, and allowing others to be scrapped.
The Class 117 units operated mostly peak services from Edinburgh over the Forth Bridge to Cowdenbeath, Markinch, Perth and Fife Circle services.
They were also used on a regular driver training trip taking them to Eastfield and Stirling.
At the end of September 1999 the centre cars (TSL) were removed and the remaining units ran paired as 2x2-car sets so as to able to run to faster timings.
They were eventually withdrawn once the first batch of Class 170s had been introduced onto the Edinburgh - Glasgow route allowing Class 158s to take over Fife services.
The last day of 117s in service with ScotRail was 27th November 1999.
The units were then stored at Perth Carriage Shed until being moved south in March 2000 to be stored at MoD Shoeburyness.
Several Class 117 units survive in preservation, including many of those based at Haymarket in the 1990s.
A two-car unit moved to the Strathspey Railway in 2005. This is in original BR Green livery and is used on off-peak services. A centre car (TCL) was moved to Boat of Garten in 2007 and is currently under restoration.
51367 Class 117 DMBS
51402 Class 117 DMS
59511 Class 117 TCL - under restoration
They were very similar in design to the Class 116 units, but had a headcode box on the cab roof, and the centre car had toilets.
In the early 1990s some of the class, by now based at Tyseley (Birmingham), were refurbished and painted in Regional Railways livery.
These units were later sent north to Haymarket Depot, releasing four Class 101 units for Strathclyde duties, and allowing others to be scrapped.
The Class 117 units operated mostly peak services from Edinburgh over the Forth Bridge to Cowdenbeath, Markinch, Perth and Fife Circle services.
They were also used on a regular driver training trip taking them to Eastfield and Stirling.
| Set No. | DMBS | TSL | DMS | To Haymarket | Remarks |
| 117 301 | 51353 | 59505 | 51395 | Jul.1993 | |
| 117 306 | 51369 | 59521 | 51411 | Jul.1993 | |
| 117 308 | 51371 | 59509 | 51413 | Jul.1993 | stored by 1997 |
| 117 310 | 51373 | 59486 | 51381 | Mar.1994 | |
| 117 311 | 51352 | 59500 | 51376 | Mar.1994 | |
| 117 313 | 51339 | 59492 | 51382 | Mar.1994 | |
| 117 314 | 51334 | 59489 | 51394 | Jul.1993 | stored by 1997 |
At the end of September 1999 the centre cars (TSL) were removed and the remaining units ran paired as 2x2-car sets so as to able to run to faster timings.
They were eventually withdrawn once the first batch of Class 170s had been introduced onto the Edinburgh - Glasgow route allowing Class 158s to take over Fife services.
The last day of 117s in service with ScotRail was 27th November 1999.
The units were then stored at Perth Carriage Shed until being moved south in March 2000 to be stored at MoD Shoeburyness.

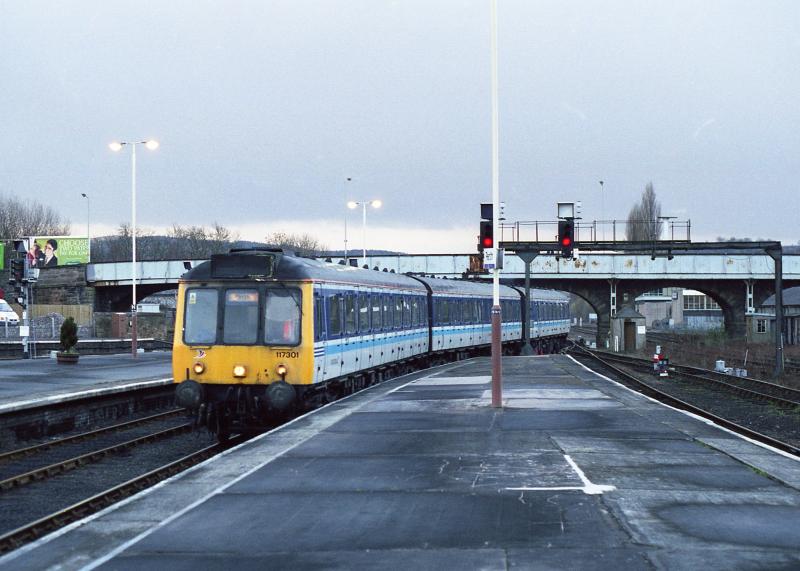

117301 arrives at Perth on the 1727 from Edinburgh via Dunfermline on 29 March 1999. Photo by 6089Gardener
Preservation
Several Class 117 units survive in preservation, including many of those based at Haymarket in the 1990s.
A two-car unit moved to the Strathspey Railway in 2005. This is in original BR Green livery and is used on off-peak services. A centre car (TCL) was moved to Boat of Garten in 2007 and is currently under restoration.
51367 Class 117 DMBS
51402 Class 117 DMS
59511 Class 117 TCL - under restoration
