Caledonian Railway steam locos with 0-4-4T wheel arrangement.
Built for use on Suburban and branch line passenger trains.

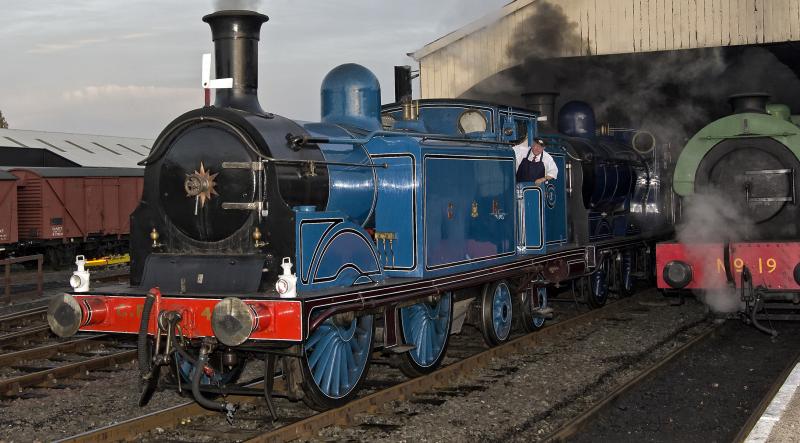

CR No. 419 at the BKR steam Gala on 04/11/2018 Photo by big55012


Caledonian Railway 0-4-4T locomotives inherited by LMS and BR

Designer CR Class
LMS Class
 Built Quantity CR numbers LMS numbers BR numbers Last Wdn. Link
Drummond CR class '171'
1P
 1884-1891 24 171-178, 189-194, 222-231. (non seq) 15100-15114 n/a 11/1945, BRdb Flickr
Lambie CR class '19'
2P
 1895 10 19-28 15115-15124 55119-55124 09/1961, BRdb Railonline
McIntosh CR class '92'
2P
 1897 12 92-103 15125-15136 55125-55136 07/1961, BRdb Flickr
McIntosh CR class '879'
2P
 1900 10 879-886, 437,438 15137-15146 55138-55146 07/1958, Brdb Railonline
McIntosh CR class '104'
1P
 1899 12 104-111, 167-170 15147-15158 n/a 04/1938, BRdb Flickr
McIntosh CR class '439'
2P
 1900-1922 78 439-455, and other 1XX, 2XX, 38X, 4XX, 6XX numbers. 15159-15236 55159-55236 12/1962, BRdb Flickr
Pickersgill CR class '431'
2P
 1922 4 431-434 15237-15240 55237-55240 11/1961, BRdb Railonline
Pickersgill n/a
2P
 1925 10 n/a 15260-15269 55260-55269 12/1962, BRdb Flickr

  • The 19 and 92 classes were originally fitted with condensing apparatus for use on Glasgow Central Low Level lines.
  • The 19 class had smaller water tanks than the later classes.
  • The 104 class had a wide cab and smaller driving wheels, and were used on the Cathcart circle and Balerno branch.


  • Missing number blocks in the LMS sequence are Glasgow & South Western Railway Locos:
    • 15241-15244 were Smellie GSWR Class '1' 0-4-4T, the last withdrawn in 1926.
    • 15245-15254 were Manson GSWR Class '326' 0-4-4T, the last withdrawn in 1932. <Flickr>
  • Highland Railway Class 'W' 0-4-4T locos were LMS 15051-15054, with 55051 & 55053 surviving into the BR period.
